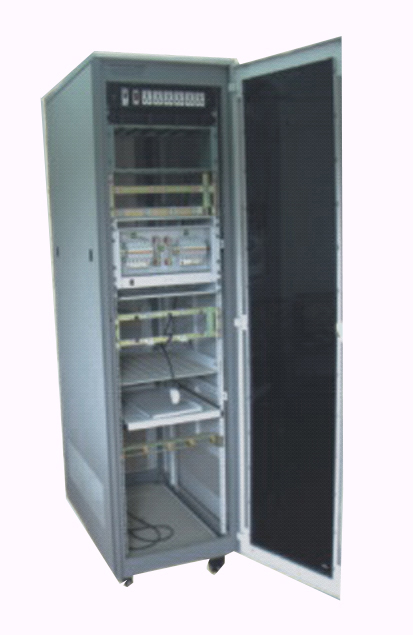

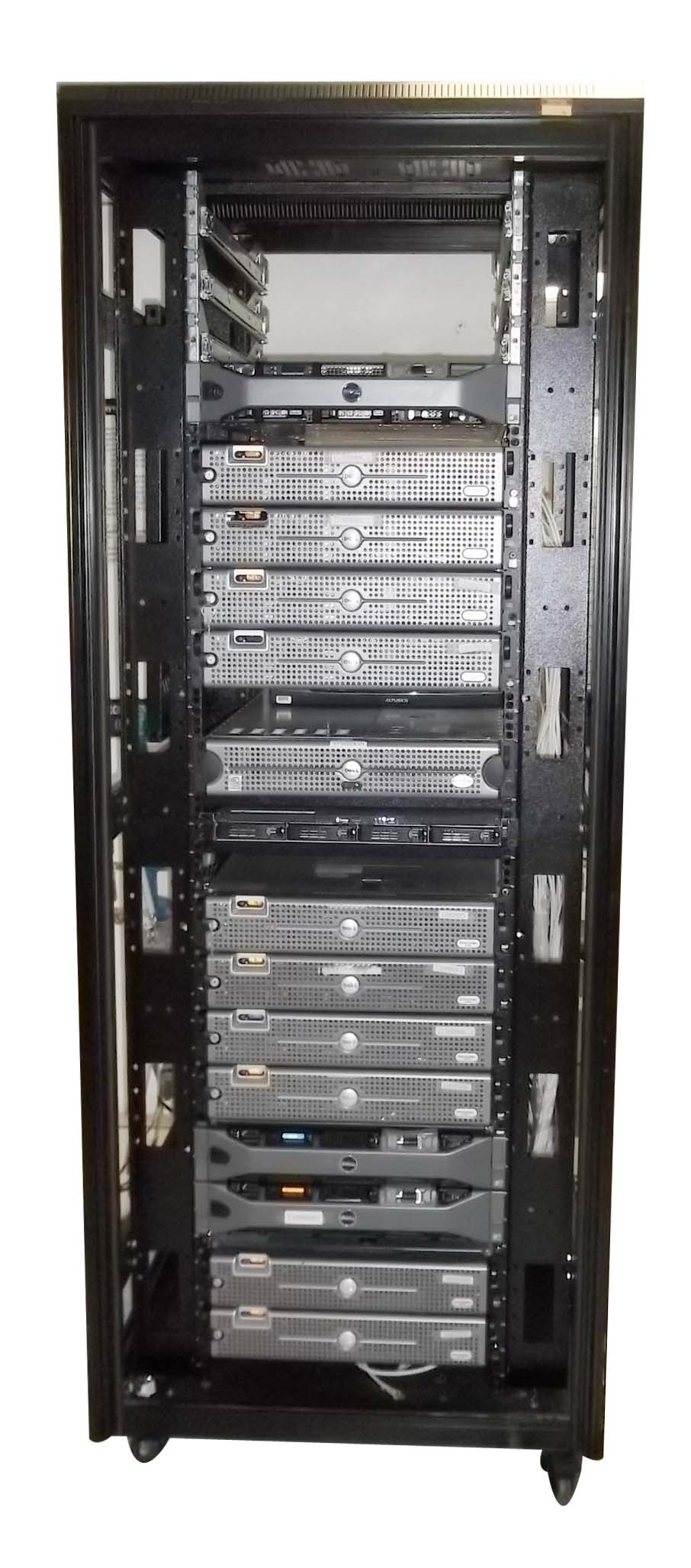

Floor Standing Racks for Servers |
 |
|
|
- Product Features
- Sizes
- Scope of Supply
- Optional Accessories
- These racks are exclusively designed for housing servers
- Has unique construction with steel horizontal frames and vertical aluminium extrusions
- Confirms to DIN41494
- Superior aesthetics and economy
- Removable side panels with salm latches and cams lock
- Adjustable mounting angles
- 800mm Wide version with additional space for cable management for networking application
- Attractive honeycomb type ventilation for the doors.
- Height: 24U, 30U, 36U and 42U
- Width: 600mm & 800mm
- Depth: 650mm, 800mm, 1000mm & 1200mm
- Other Dimenstions will be provided on request
- Basic Rack with Top, bottom and removable side panels 1 No
- Mounting Angles 2 pairs
- Leveling legs (Set of 4) - 1Set
- Reducing Cable Channels - 4 Nos. Incase of 800mm.
- Glass door
- Steel door - Options of Plain, Vented and honeycomb Perforated
- Castors - Set of 4
- Fans
- Cantilever shelf
- Stationary shelf
- AC Distribution box - Horizontal and Vertical mounting
- Horizontal and Vertical Cable Managers
- Modem sub racks
- Earthing Kits, Vent and Blank Panels
- Vent and Blank Panels
- Temprature and humydity monitoring
- Electronic keypad locks,
- Monitored fan trays
- Fan bank on the rear doors.
|
|
|
|
|
|
